DCHZ60-370
Profile information:
basic information
Product Number:
Release time:
2019-07-11
The corresponding parameter group was not found. Please add in the background attribute template.
没有此类产品
Description
Application
Pump body: Castiron
lmpeler:Brarslui/Aluminum/Stainless steel/PPO
Motor: Closed, etemal venlated
Insulation class:B(lassFifrequired)
Protection class:IP44
Duty:Coninuslyrated
Mechanical seal: Ф12+14 Ф 16ceramic steatite/graphite
Shaft:Catbon te AISI 105asinls steel Alsl 1420 if required)
The normar power standard is 220V 50Hz single phase
Three phase 220*380V/50Hz,220/440V/60Hz,Single phase 230V,240V,127V,110V,115V/60Hz models are available on request

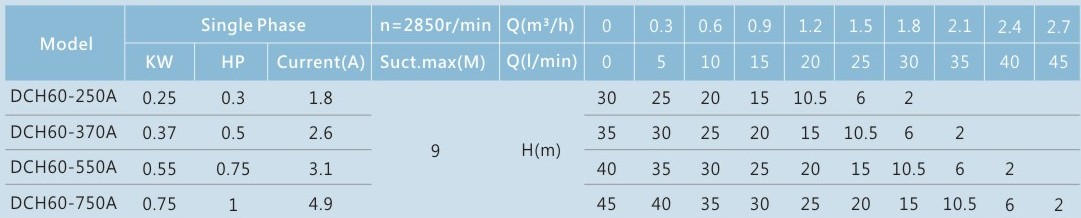

Perfpormance Data

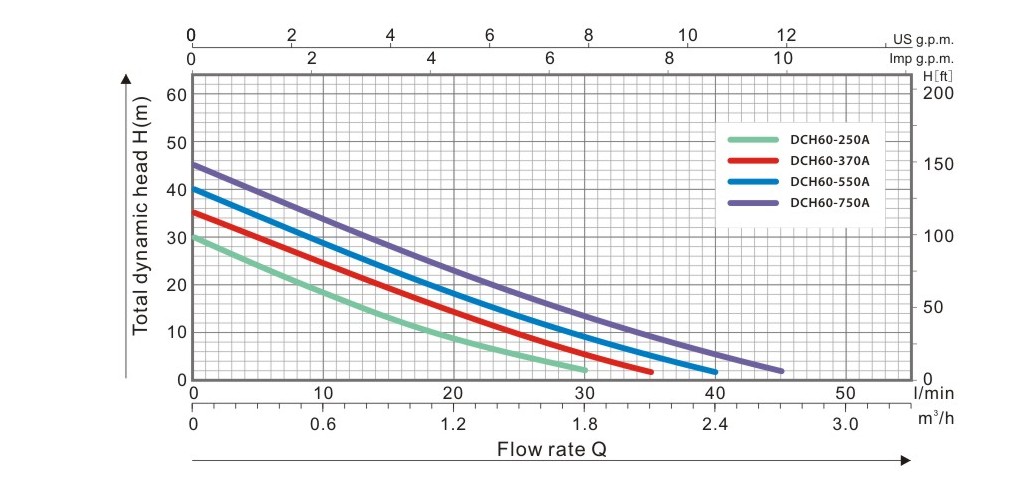

Performance chart at n=2850r/min

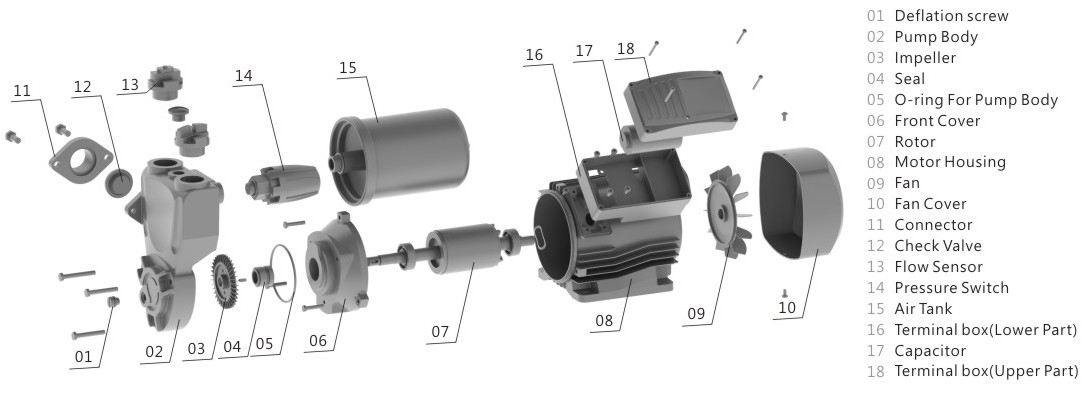

Materials Table

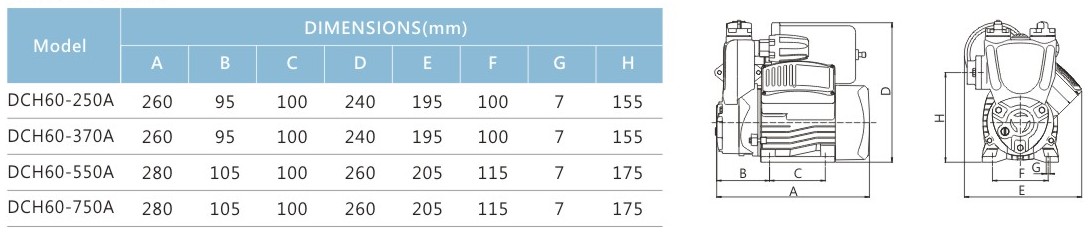

Dimensions

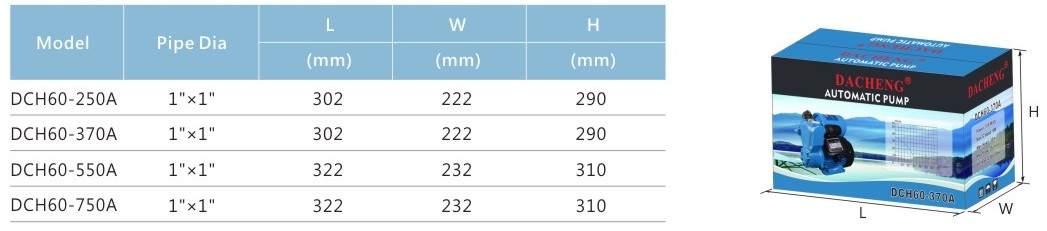

Package Information
