DCHZ60-370
Profile information:
basic information
Product Number:
Release time:
2019-07-11
The corresponding parameter group was not found. Please add in the background attribute template.
没有此类产品
Description
Application
Pump body: Castiron
lmpeler:Brsss
Motor: Closed, etemal venlated
Insulation class:B(lassFifrequired)
Protection class:IP44
Duty:Coninuslyrated
Mechanical seal: Ф12 ceramic steatite/graphite
Shaft:Catbon te AISI 1045asinls steel Alsl 420 if required)
The normar power standard is 220V 50Hz single phase
Three phase 220/380V/50Hz,220/440V/60Hz,Single phase 230V,240V,127V,110V,115V/60Hz models are available on request

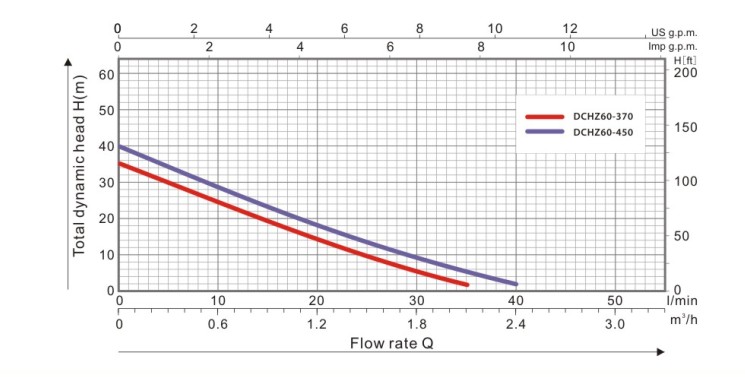

Performance chart at n=2850r/min

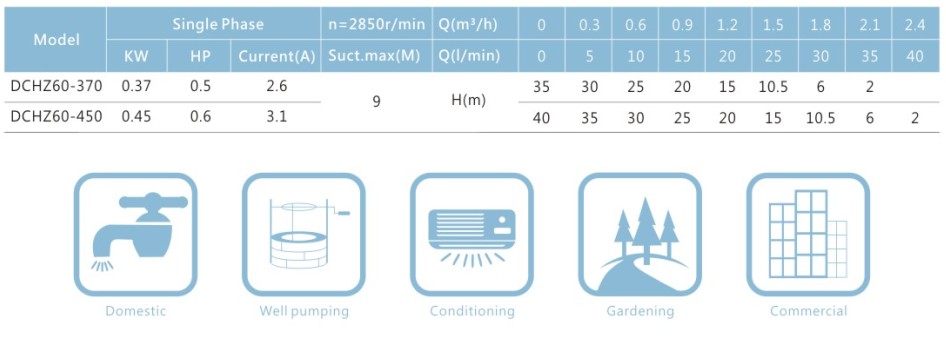

Perfpormance Data

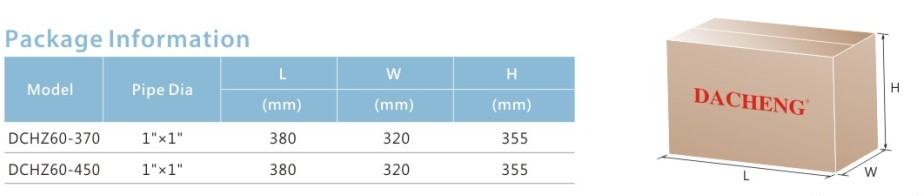

Package Information
On a
EP155
The next article
DCH60-550A
