KF-0
Profile information:
basic information
Product Number:
Release time:
2019-07-11
The corresponding parameter group was not found. Please add in the background attribute template.
没有此类产品
Description
Application
Pump body: Cast ironImpeller: Cast iron
Power: Motor or gasoline engineProtection class: IP44
Duty: Continuously rated
Mechanical seal: ф 24 ceramicsteatite/graphite
Shaft: Carbon steel AISI 1045(Stainlesssteel AISI 420 if required)

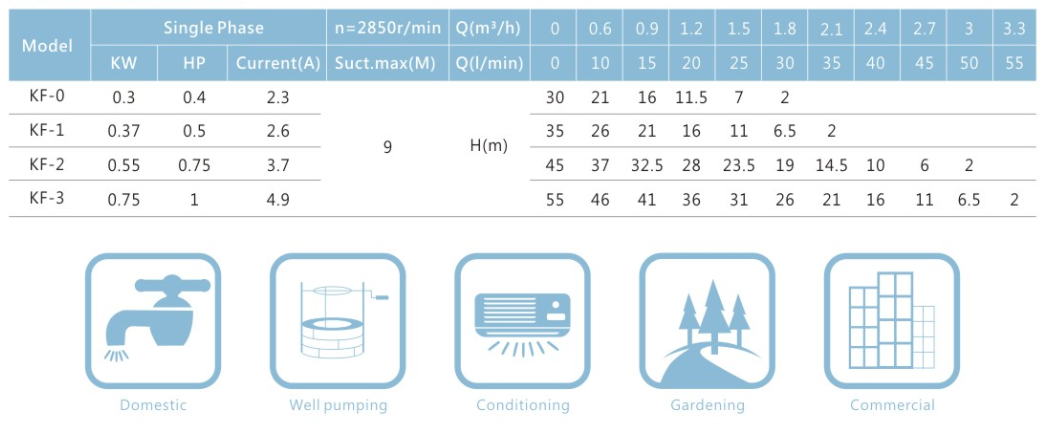

Performance Data：

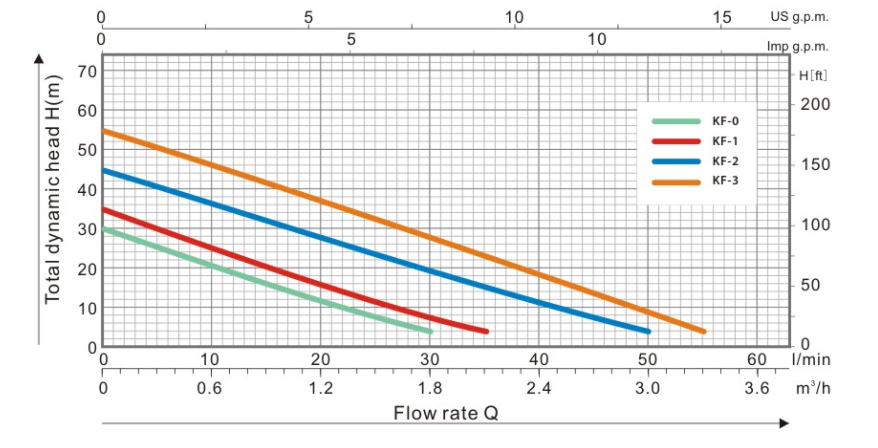

Performance chatr at n=2850r/min：

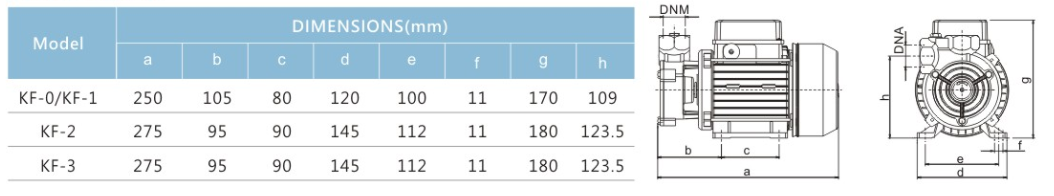

Dimensions：

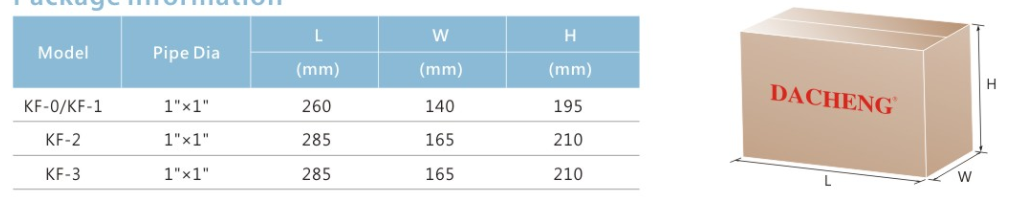

Package Information:
On a
KF-2/3
The next article
KF-1
